Settings > How to Configure Alerts [WAN Down]

Who can modify this feature?

• Partner
• Company/Network Admins with write access
• Meter Support

What does this alert mean?

The WAN Down alert will fire if the Meter security appliance has no active WAN connection and has failed over to management LTE for more than 5 minutes. This means that no device on the Meter network can reach the internet.

What do I do if I receive this alert?

Meter Support will be proactively reaching out to you shortly. If you have not seen an email come in from Support yet, please open a ticket by logging into dashboard.meter.com and clicking on the support button

or email support@meter.com

Check for power and physical connections

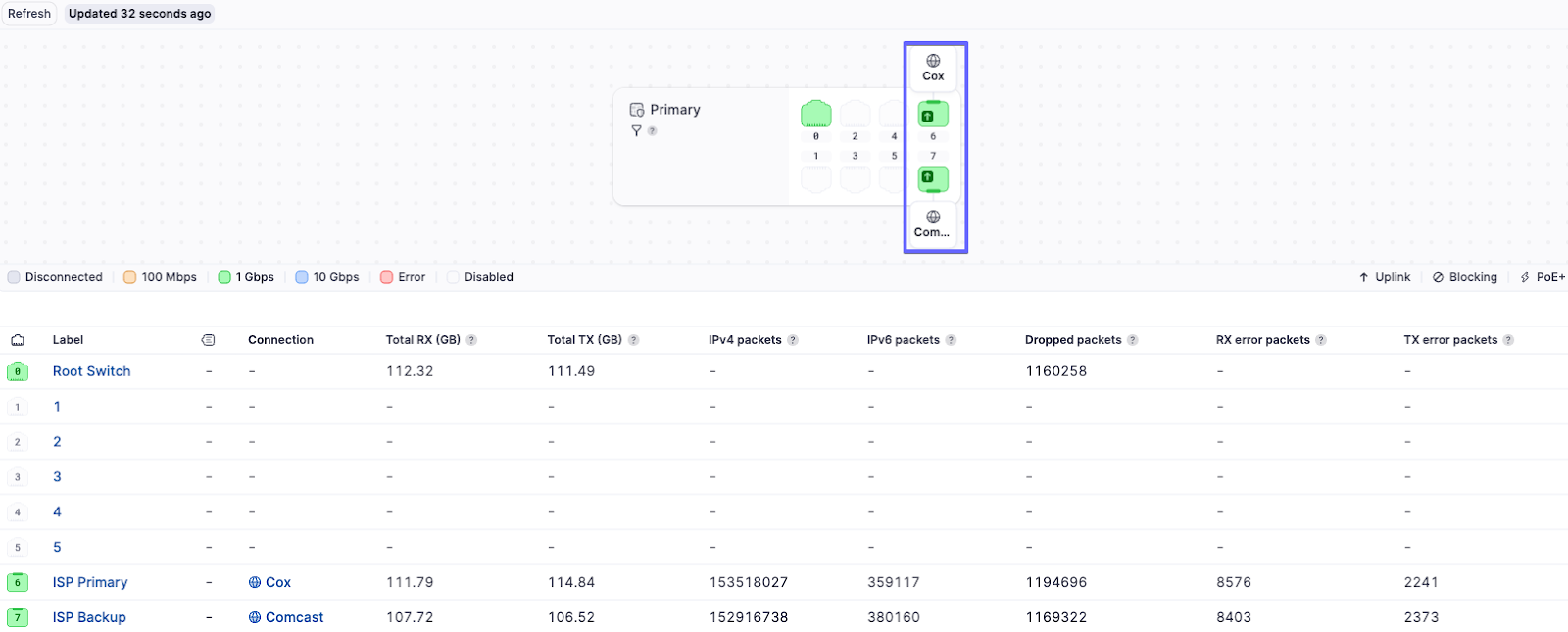

Log in to the Meter Dashboard and navigate to Hardware > Security Appliances > Click on the Primary Security Appliance > Ports.

Ensure that the ‘WAN’ ports show an active link. A port has an active link if it is colored in yellow, green, or blue. ‘WAN’ ports will also have an upward-pointing arrow, indicating it is a WAN port. To see how many ISP connections a site has, navigate to Network-wide > ISPs (a location may only have a single ISP connection).

If no ports are lit up, the site could be experiencing a power outage, and the Meter SA is being powered by a UPS. Or, the ISP equipment was somehow disconnected or powered off. Meter Support will work with an on-site contact via phone or Zoom to verify.

Ping the Gateway and beyond

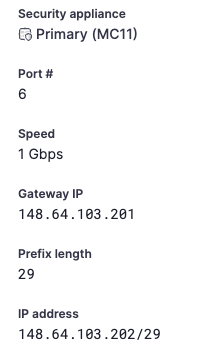

If there is a link and the ISP connection is using a static IP address, try pinging the ISP gateway address from a device on the Meter LAN or Wi-Fi network, or via the Dashboard. The IP address is found on the ‘Insights’ tab of the Security appliance.

In this case, the address is 148.64.103.201. If this address is reachable but an address past this, such as 8.8.8.8, is not - this indicates that the ISP is currently experiencing an outage.

Contact the ISP

If Meter handles your ISP billing and support, Meter will reach out to the ISP on your behalf and provide updates.

It is Meter’s top priority to ensure that the network is up and running. Please contact Meter Support by opening a ticket in the Meter Dashboard.

Or email support@meter.com anytime you believe you are experiencing an outage.
