Wireless > SSIDs [Dynamic VLANs]

Who can modify this Feature?

• Partner
• Company Admin
• Network Admin
• Meter Support

What is a dynamic VLAN?

VLANs are used to segment certain types of network traffic from other traffic, such as Private, Guest, and AV network devices. Normally, one Wi-Fi SSID is tied to one VLAN.

With a dynamic VLAN, an access point can assign a VLAN to each client as they connect, using only one Wi-Fi SSID.

Requirements

Dynamic VLANs require 802.1X Authenication (RADIUS). The RADIUS server must be configured to provide a VLAN ID to each client as they authenticate to the server. Read more about pointing your Wi-Fi SSID to a RADIUS server here: Network-wide > RADIUS profiles [Adding 802.1X and WPA2-Enterprise on your Meter Network]

The RADIUS server should set the following attributes for VLAN assignment:

• Tunnel-Medium-Type = 6
• Tunnel-Type = 13
• Tunnel-Private-Group-Id = <VLAN_ID>

VLANs that can be assigned by the RADIUS server also need to be added to the Meter Security Appliance. Read more about adding VLANs here: Network-wide > VLANs

Configuring an SSID with a Dynamic VLAN

1. Log in to the Dashboard: https://dashboard.meter.com/
2. Navigate to Wireless > SSIDs > Add SSID

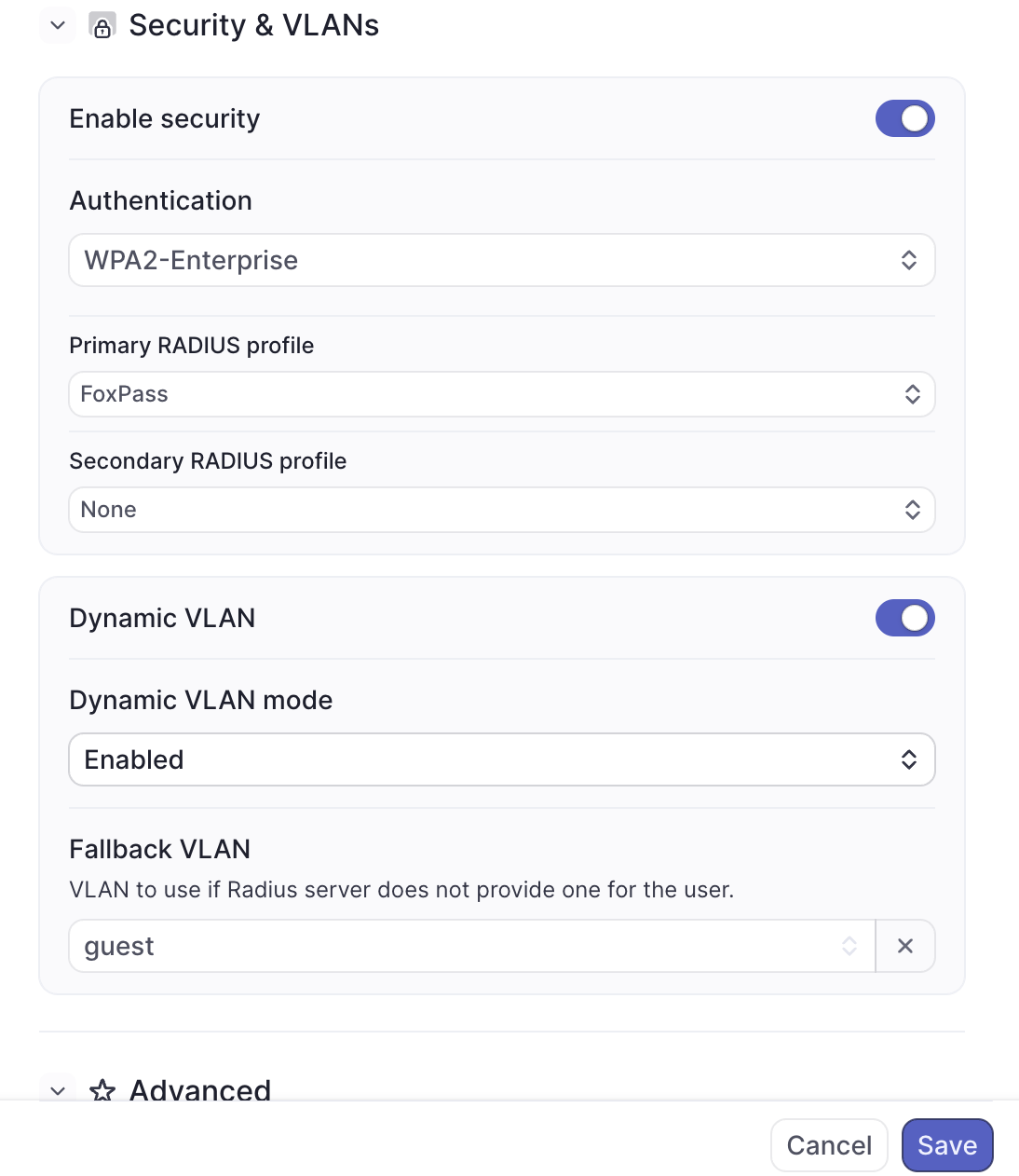

3. Configure SSID > Security > Authentication, select any RADIUS-based security
4. Toggle on 'Dynamic VLAN’

Dynamic VLAN: Toggle this setting based on your use case.

Off: All devices using this SSID will be assigned to the selected VLAN.

On - Enabled: If no VLAN is specified by the RADIUS server for the client, the system will use the fallback VLAN.

On - Required: If no VLAN is specified by the RADIUS server for the client, the system will reject this client.

Current Limitations

The maximum VLAN count is 128 per access point.
